Type J – Double Door Section – How to Order

BACK TO "TYPE J" PAGE
BACK TO GUARD SECTIONS
CONFIGURE
CATALOG

Choose your options to configure your part number

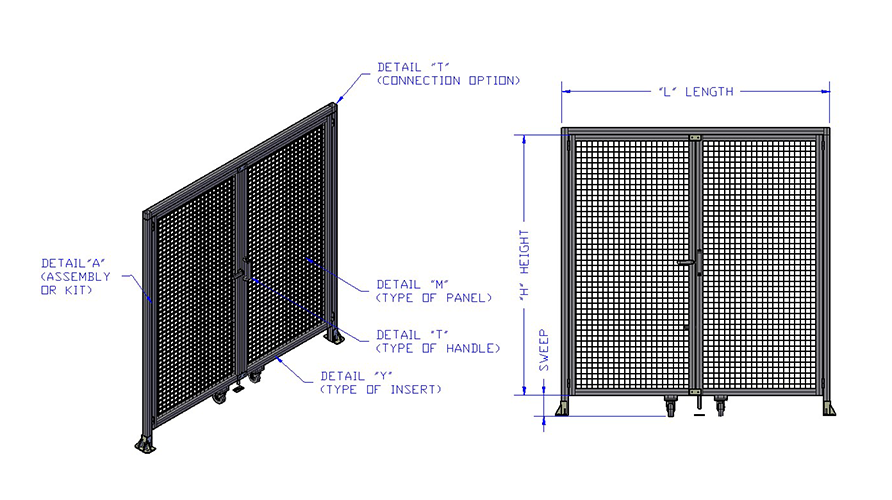

J1-1000-1000-0150-tymft
TypeHeightWidthSweepHandleOptionInsertFootAssembly
Double Door (Type)
Height
Width
Handle Option's (Handle)
insert
panel material (panel)
Sweep
foot type (foot)
Assembled or kit (assembly)
A - Assembled (Factory Assembles)
K - Kit (Customer Assembles)

Ready to Configure Your Guarding Section?

With our online configurator you can generate a solid model and part number for your guarding section.

CONFIGURE
