Type G – Single Swing Door – How to Order

BACK TO "TYPE G" PAGE
BACK TO GUARD SECTIONS
CONFIGURE
CATALOG

Choose your options to configure your part number

G1-1000-1000-0150-TYMFT
TypeHeightWidthSweepHandleInsertPanelFootAssembly

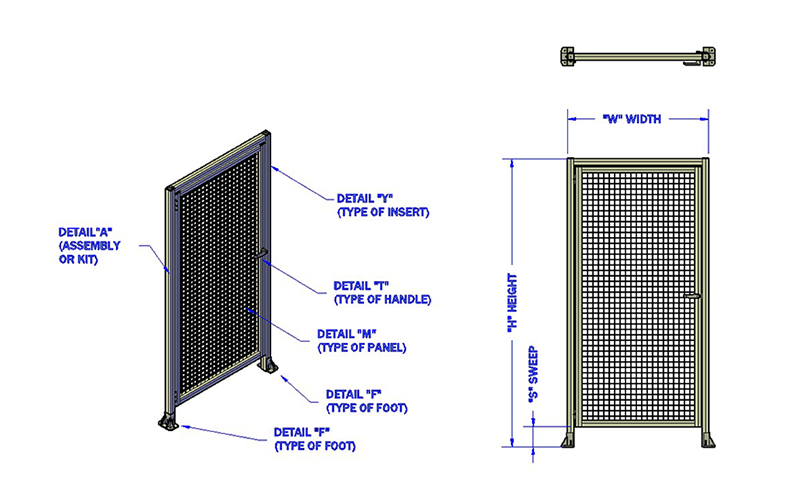

Guard Type (Type)
Height
Width
Sweep
Handle Options (Handle)
insert
panel material (panel)
foot type (foot)
Assembled or kit (assembly)
A - Assembled (Factory Assembles)
K - Kit (Customer Assembles)
